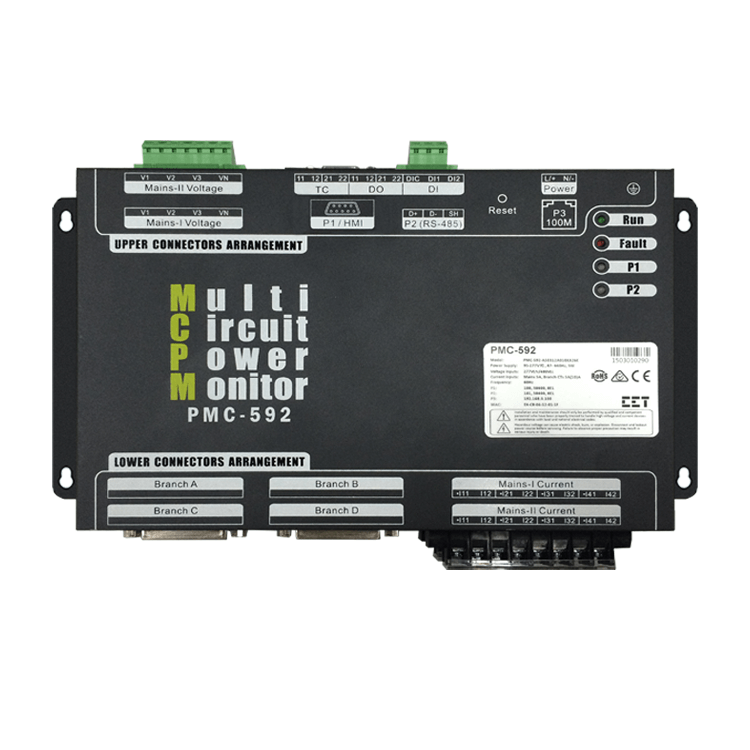

The PMC-592 MCPM is the ultimate solution for PDU, LVDB and Load Center applications
that require multi-circuit monitoring. Housed in a compact metal enclosure.
he PMC-592 features quality construction with multifunction and High-Accuracy measurements,
two Mains Inputs, up to 84 Branch Circuit Inputs and an optional 7” Touch-Screen HMI.
The PMC592 comes standard with two Digital Inputs for status monitoring, two Digital Outputs
for control or alarming as well as two RTD Inputs for temperature measurements.
SOE Log records all setup changes, Setpoint alarms and DI/DO operations in 1ms resolution.
With Ethernet and dual RS-485 supporting Modbus RTU/TCP, HTTP, SMTP, SNMP,
PMC-592 becomes a vital component of a multi-circuit monitoring solution.
PMC-592 English User Manual V1.1
